CR5.
1,5 VA Rating

CR5. 1,5 VA Rating

CR5

Technical characteristics

Rating
1,5 VA
Input voltage
12-24 Vdc
Alarma acústica
2400Hz signal. 2Hz intermittent
Frequency
50 – 60 Hz
Protection degree
Frontal: IP-30, Rear: IP-20
Ambient temperature
From -10 to 60C
Humidity
95% max.
Mounting
Module Flush-Mounted Box Type: E503
Weight
0,12 kg
Dimensions (AxBxCxDxE)
123x58x79 mm
How to buy?

You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden

Features

  • Acoustic panel signaling
  • Insulation fault signaling
  • Fault signaling due to overload
  • Fault signaling due to overtemperature
  • Joint check: VA40 + TI1 + CR5

Plans

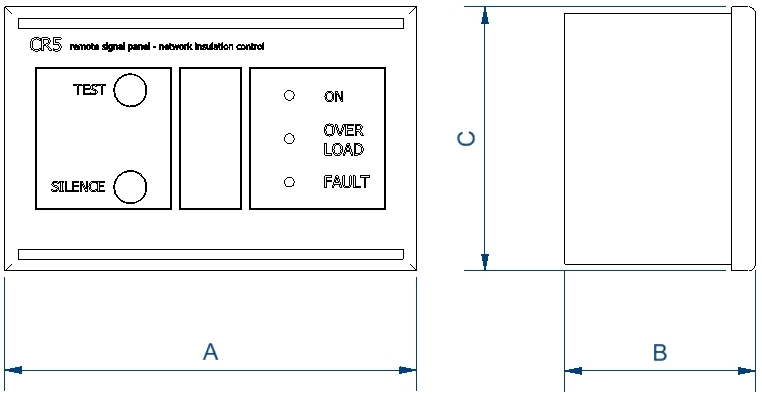

Plano de CR5. 1,5 VA Rating

Panel structure

Other references in this series

Rating
1,5 VA
Input voltage
12-24 Vdc
Alarma acústica
2400Hz signal. 2Hz intermittent
Frequency
50 – 60 Hz

View product »

Special fabrications

We build transformers and inductive elements tailored to your needs.

Explain your needs and our engineers will create a solution adapted to your company.
