CTM4. 4 VA Rating

CTM4-485-A

Technical characteristics

Rating
4 VA
Input voltage
115-230-400 Vac
Output voltage
RS485, analogue output 4-20 mA
Frequency
50 – 60 Hz
Protection degree
Frontal: IP-52, Enclosure and Terminals: IP-20
Ambient temperature
From -10 to 60ºC
Humidity
90% max.
Mounting
Panel board
Standards
CEI-EN 60529
Weight
kg
Dimensions (AxBxCxDxE)
xx mm
How to buy?

You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden

Features

Input

Maximum for 4 input for sensors PT100.

Output

Level for alarm, trigging and ventilation for each input.

Display with double digital screen, memorize maximum values (additionnal function), display higher temperatutre.

Supply : 20 ÷ 250 Vcc/cc or 110 – 230 to 400 Vac.

Serial output type : RS232/RS485 Modbus RTU

Analogica output : 0/4 ÷ 20 mA

Plans

 Plano de CTM4. 4 VA Rating

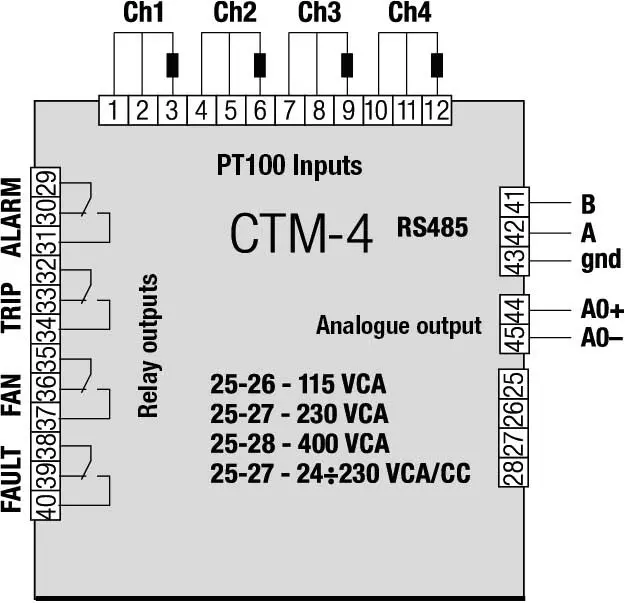

Electric scheme

Panel structure
