C30D.
50 kVAr Rating
C30D50
Technical characteristics
Rating
50 kVAr
Line voltage
400 V
Frequency
50/60 Hz
Protection degree
IP-23 / IK-08
Cooling
ANAN
Ambient temperature
45 ºC
Temperature rise
Class H – 180ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 60076|61000-3-2/4, CE y IEE 519, CE
Weight
390 kg
Dimensions (AxBxCxDxE)
795x550x970x500x415 mm 12Ø
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Compensator
Anti-flash varnish finish, offering:
- Protection against corrosive environments
- Increase of electrical isolation
- High compression capacity
- Reduction of noise level
- Increase of product's lifespan
Metalic box IP-23 enclosure painted with epoxy polyester resin RAL 7035 (cat. C2 ISO 12994-2)
Safety class I
Includes lifting eyebolts
Possibility of tailor-made manufacturing
Technical remarks:

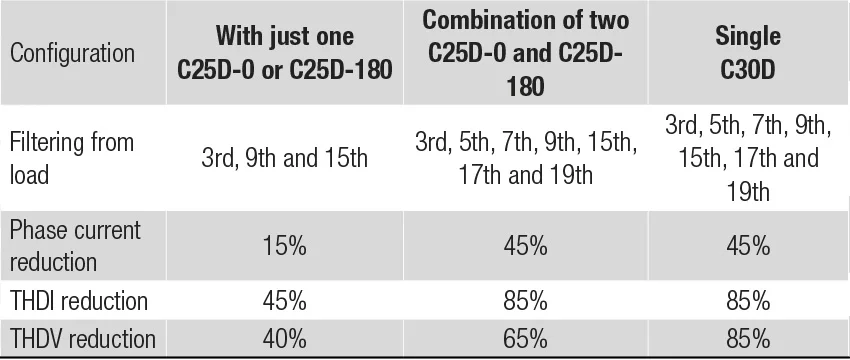

- Compensator for homopolar and no homopolar harmonic filtering
- 50% Sn for each secondary
- For more information check our compensators' application guide
