Technical characteristics

Rated current
31,5 A
Motor rating
4 kW / 5,5 CV
Line voltage
220 – 260 V
Reactor
0,697 mH (50 Hz)
Voltage drop
3% (50 Hz)
Frequency
50/60 Hz
Protection degree
IP-20
Thermal protection
Thermal protection (NC) 120°C
Cooling
AN
Ambient temperature
45 ºC
Temperature rise
Class B – 130ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 60076-6, CE
Mounting
Screws
Weight
2,9 kg
Dimensions (AxBxCxDxE)
96x112x126x96x77 mm 6Ø
How to buy?

You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden

Features

Advantages of resin technology:

  • Protection against corrosive environments
  • Protection against high vibration levels
  • Protection against electrodynamic efforts
  • Reduction of noise level
  • Increase of product’s lifespan

Includes thermal protection against overtemperatures

DIN rail or screw fixing up to R16.

Possibility of tailor-made manufacturing

Technical remarks about the use of line reactors:

  • Reduction of the current harmonics generated by the equipment, reducing current consumption and improving power factor
  • Reduction of the peak factor of the current wave, increasing equipment’s lifespan
  • Attenuation of the microcuts of the feeding voltage produced by the converter, source of the bad functioning of computers, robots and other equipments

Applications

  • Single-phase low rating installations where harmonic filtering is required, such as those with non-linear loads, rectifiers, single-phase frequency converters, power supplies, etc.
  • Environments with high humidity or corrosion, as well as vibrations and voltage peaks, due to the resin coating.

Downloads

Plans

Plano de R. 31,5 A Rated current

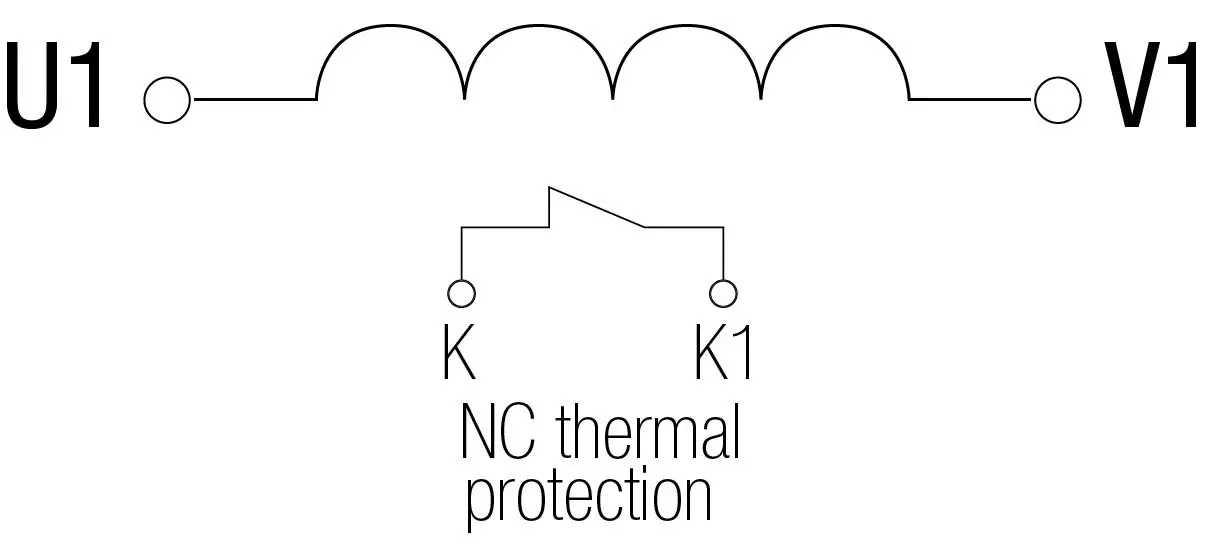

Electric scheme
