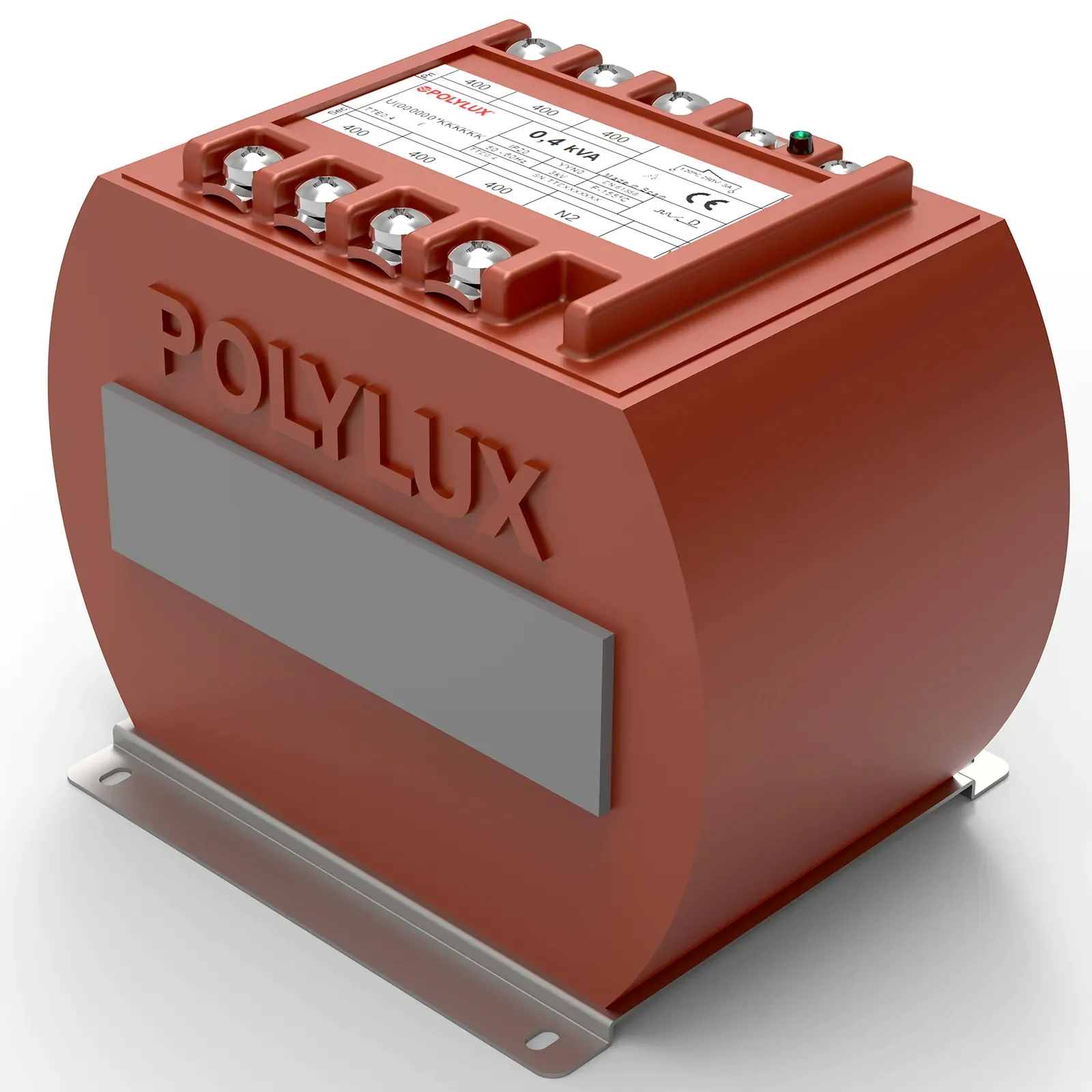

RTL.
31,5 A Rated current

RTL. 31,5 A Rated current

RTL31.5

Technical characteristics

Rated current
31,5 A
Motor rating
15 kW / 20 CV
Line voltage
380 – 460 V
Reactor
0,933 mH (50 Hz)
Voltage drop
4% (50 Hz)
Thermal overload factor
0,05
Frequency
50/60 Hz
Protection degree
IP-20
Cooling
AN
Ambient temperature
45 ºC
Temperature rise
Class F – 155ºC
Insulation
Clase H – 180 ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 60076-6, CE
Mounting
Screws
Includes
Bimetal thermal protection
Weight
9,7 kg
Dimensions (AxBxCxDxE)
210x198x185x178x173 mm 7Ø
How to buy?

You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden

Features

Reactor

Advantages of resin technology:

  • Protection against corrosive environments
  • Protection against high vibration levels
  • Protection against electrodynamic efforts
  • Reduction of noise level
  • Increase of product's lifespan

​Safety class I

Includes thermal protection against overtemperatures

Possibility of tailor-made manufacturing

Technical remarks about the use of line reactors:

  • Reduction of the current harmonics generated by the equipment, reducing current consumption and improving power factor
  • Reduction of the peak factor of the current wave, increasing equipment's lifespan
  • Attenuation of the microcuts of the feeding voltage produced by the converter, source of the bad functioning of computers, robots and other equipments

Downloads

Plans

Plano de RTL. 31,5 A Rated current

Electric scheme
