N.
100 VA Rating

NC100

Technical characteristics

Rating

100 VA

Input voltage

230-400 V

Output voltage

24-48 V

Frequency

50/60 Hz

Protection degree

IP-20

Cooling

Ambient temperature

45 ºC

Temperature rise

Class B – 130ºC

Insulation

Class H – 180ºC

Windings

Class HC – 200 ºC

Test voltage

4,6 kV (1 min, 50 Hz) pri-sec 3,2 kV (1 min, 50 Hz) pri-earth 2,5 kV (1 min, 50 Hz) sec-earth

Standards

IEC/EN/UNE-EN 61558, CE

Mounting

Screws and DIN Rail

Weight

1,8 kg

Dimensions (AxBxCxDxE)

75x96x100x80x56 mm 6Ø

Add to quote

Buy

Request information

Download product sheet

How to buy?

You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden

Features

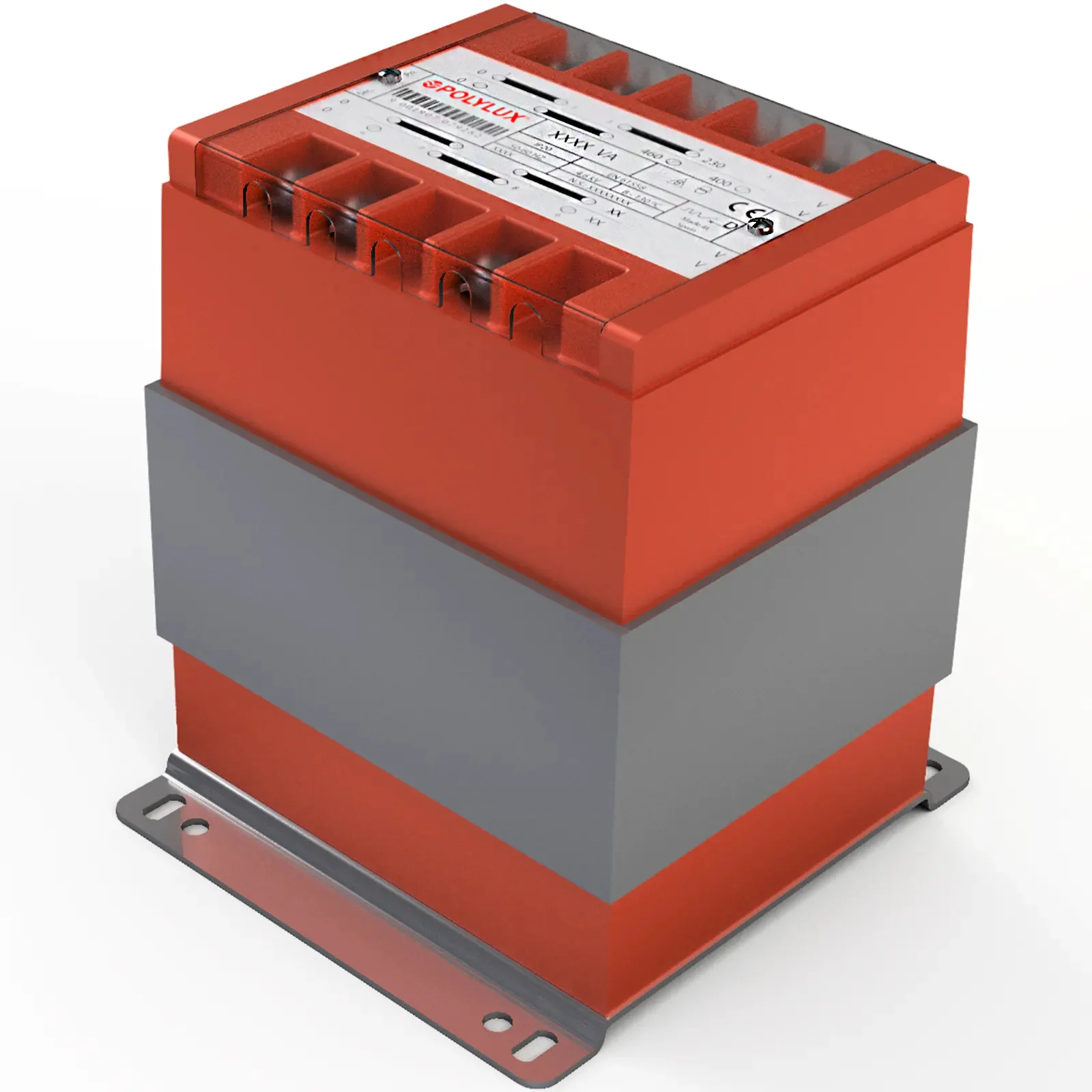

Dry type transformer.

Encapsulated in IP20 resin.

No electrical part of the transformer is directly accessible by the user.

Full power in all the shots.

Tension selection through metal bridges (included).

Fixation by DIN rail (up to 100VA) or screws.

Possibility of custom manufacturing if the standard specifications are not required

Applications

The P, Q and N transformers are specially designed to adapt voltages in maneuver and control applications in both domestic and industrial environments as well as in electrical cabinets.
Another important application is the galvanic insulation of installations for safety reasons, as well as the generation of ground-referenced neutrals.
Thanks to the encapsulation in resin the transformers of the Series N are the optimal solution for zones humid areas with high degrees of corrosion and dust.
Areas with high levels of vibrations

Available accessories

Downloads

Certificates.

CE Certificate.
Configuration of bridges P /Q / N Series, rating :25-100 VA. Watch video
Configuration of bridges P /Q / N Series, rating:160-5000 VA. Watch video

Plans

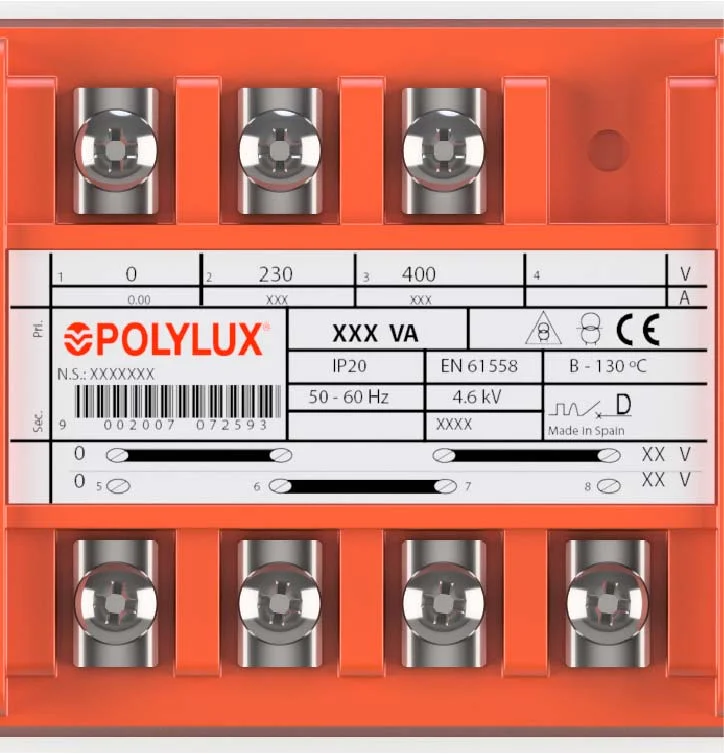

Electric scheme

≤ 160 VA

Input:		Output:
230 V	Connection: 1-2	Reference NB 12 V	Connection: 5-8
		Reference NC 24 V	Bridges: 5-6 / 7-8
400 V	Connection: 1-3	Reference ND 115 V

		Reference NB 24 V	Connection: 5-8
		Reference NC 48 V	Bridges: 6-7
		Reference ND 230 V
