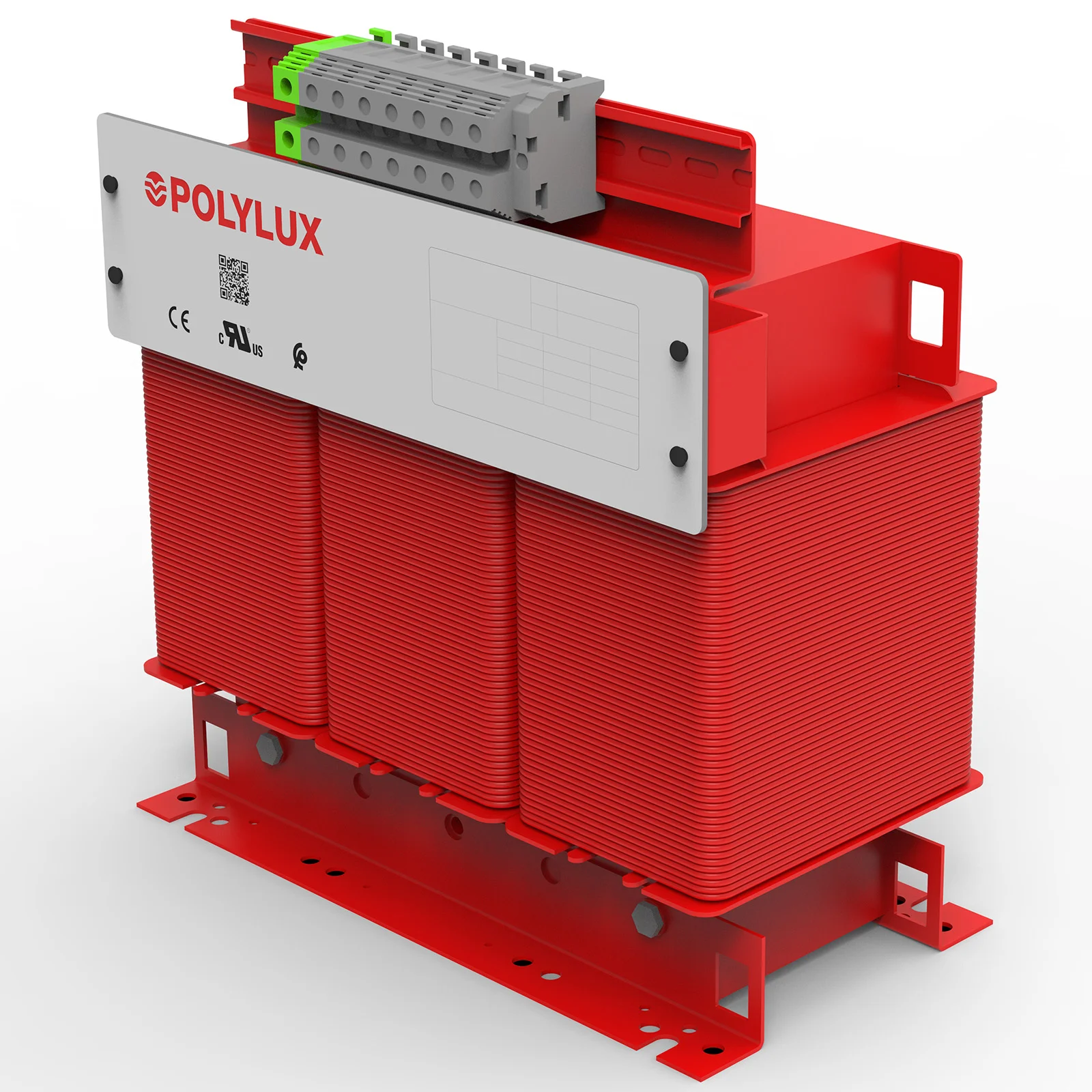

AUTNX.
5 kVA Rating
AUTNX5
Technical characteristics
Rating
5 kVA
Input voltage
400 V
Output voltage
NEUTRO
Frequency
50/60 Hz
Connection group
ZN0
Protection degree
IP-00
Cooling
AN
Ambient temperature
45 ºC
Temperature rise
Class F – 155ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 61558, CE
Weight
26 kg
Dimensions (AxBxCxDxE)
300x134x303x125x250 mm 9Ø
Price: 420.00€
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Dry type autotransformer
Anti-flash varnish finish, offering:
- Protection against corrosive environments
- Increase of electrical isolation
- High compression capacity
- Reduction of noise level
- Increase of product's lifespan
Safety class I
Includes stainless steel lifting eyebolts from 12,5 kVA
Possibility of tailor-made manufacturing
