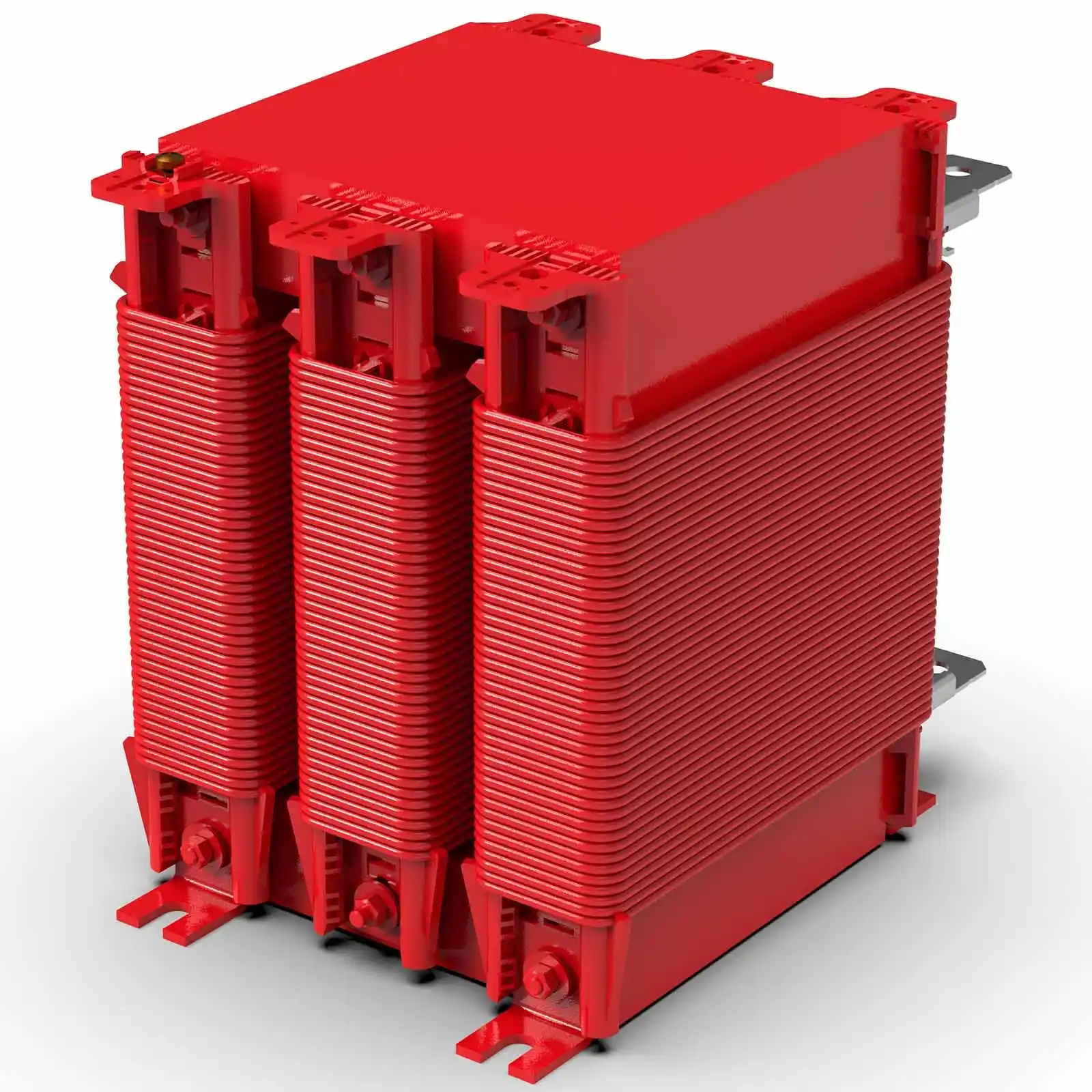

RTF5X.
50 kvar Capacitor rating
RTF5X50
Technical characteristics
Capacitor rating
50 kvar
Line voltage
400 V
Capacitor voltage
440 V, 50 Hz
Effective rating
43,7 kvar
Rated current
63,0 A
Reactor
0,6987 mH (50 Hz)
Inductance tolerance
0,03
Resonance frequency
210 Hz (p 5,67%)
Harmonic currents
I3 – 6%, I5 – 56%, I7 – 19%
Thermal overload factor
0,05
Frequency
50 Hz
Protection degree
IP-00
Cooling
AN
Ambient temperature
45ºC
Temperature rise
Class F – 155ºC
Insulation
Clase H – 180 ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Includes
Bimetal thermal protection
Standards
IEC/EN/UNE-EN 60076-6, CE
Mounting
Screws
Weight
22,9 kg
Dimensions (AxBxCxDxE)
180x215x220x160x120 mm 9Ø
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Reactor
Anti-flash varnish finish, offering:
- Protection against corrosive environments
- Increase of electrical isolation
- High compression capacity
- Reduction of noise level
- Increase of product's lifespan
Safety class I
Includes thermal protection against overtemperatures
Possibility of tailor-made manufacturing
Technical remarks about the use of detuned reactors:
- They avoid resonance between the feeding transformer's inductance and the capacitance of capacitors' bank
- They eliminate overvoltages and overcurrents either from the transformer and from the capacitors' bank
- They protect capacitors against harmonics avoiding early aging
- They limit conection peaks of the capacitors' bank increasing their lifespan and reducing microcuts in the fedding voltage
