30(Cl.0,2)-50(Cl.0,5)-75(Cl.1)VA Rating
TMTE52
Technical characteristics
Rating
30(Cl.0,2)-50(Cl.0,5)-75(Cl.1)VA
Input voltage
100..500 V
Output voltage
100..110 V
Frequency
50/60 Hz
Connection group
Dd0/Dyn11/Dyn5/Yd5/Yyn0/Yzn11/Dzn0/Ynyn0
Protection degree
IP-20
Cooling
AN
Ambient temperature
45 ºC
Thermal rating
6 times nominal rating
Overvoltage
1,2 times nominal voltage
Temperature rise
Class B – 130ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 61869-3, CE
Mounting
Screws
Weight
20 kg
Dimensions (AxBxCxDxE)
347x202x175x175x327 mm 7Ø
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Dry type cast resin transformer
Advantages of resin technology:
- Protection against corrosive environments
- Protection against high vibration levels
- Protection against electrodynamic efforts
- Reduction of noise level
- Increase of product's lifespan
IP-20 metallic enclosure with epoxy paint.
Safety class I, convertible in class II
Includes LED functioning indicator
Possibility of tailor-made manufacturing
Downloads
Plans

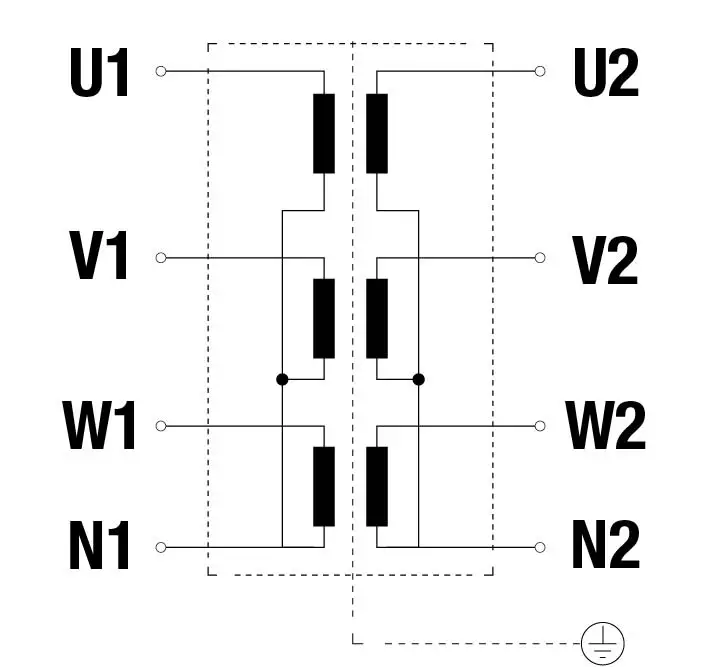

Electric scheme
