PIP.
100 VA Rating

PIP. 100 VA Rating

PIP100

Technical characteristics

Rating
100 VA
Input voltage
230 V
Output voltage
12,5 – 13 – 13,5 V
Frequency
50/60 Hz
Protection degree
IP-20
Cooling
ANAN
Ambient temperature
45 ºC
Temperature rise
Class B – 130ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 61558, CE
Mounting
DIN Rail and screws
Weight
1,7 kg
Dimensions (AxBxCxDxE)
84x101x98x88x55 mm 5Ø
How to buy?

You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden

Features

Dry type transformer

IP-20 enclosure in last generation V-0 fireproof polymer box, according to UL94

Safety class I, convertible in class II

Includes LED functioning indicator, electrostatic screen and taps on primary according to distance between transformer and spotlight (100VA (10m, 20m, 30m), 300 VA and 600VA (10m, 25m, 40m)).

Possibility of tailor-made manufacturing

Downloads

Plans

Plano de PIP. 100 VA Rating

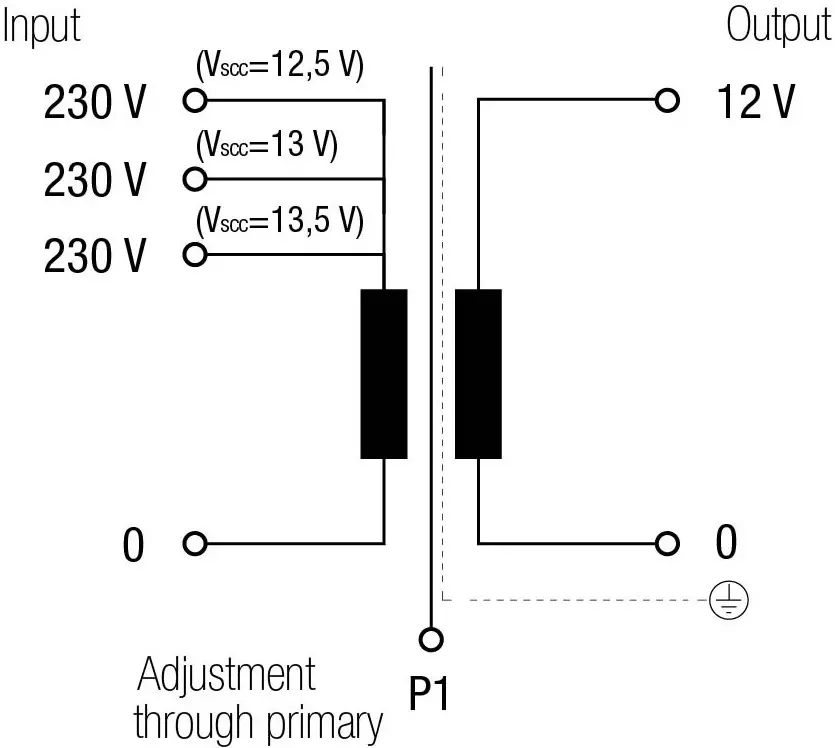

Electric scheme

PIP 100

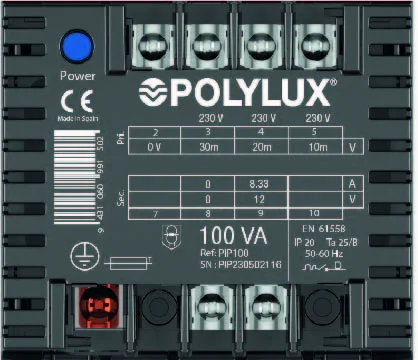

Input:
230 V (distance between spotlight and transformer 30 meters) Connection: 2-3
230 V (distance between spotlight and transformer 20 meters) Connection: 2-4
230 V (distance between spotlight and transformer 10 meters) Connection: 2-5

Output:
12 V Connection: 8-9

Other references in this series

Rating
100 VA
Input voltage
230 V
Output voltage
12,5 – 13 – 13,5 V
Frequency
50/60 Hz

View product »

Rating
300 VA
Input voltage
230 V
Output voltage
12,5 – 13 – 13,5 V
Frequency
50/60 Hz

View product »

Rating
600 VA
Input voltage
230 V
Output voltage
12,5 – 13 – 13,5 V
Frequency
50/60 Hz

View product »

Special fabrications

We build transformers and inductive elements tailored to your needs.

Explain your needs and our engineers will create a solution adapted to your company.
