AUTZ.
31,5 kVA Rating
AUTZ31.5
Technical characteristics
Rating
31,5 kVA
Input voltage
400 V
Output voltage
230 V+N
Frequency
50/60 Hz

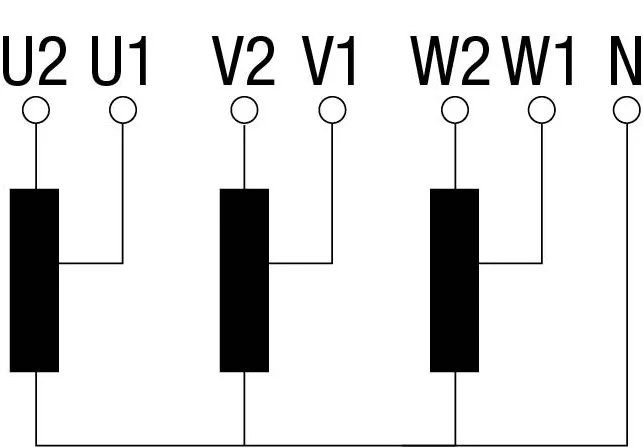

Connection group
YN0
Cover
Metal enclosure RAL 7035 (cat. C4 ISO 12994-2)
Protection degree
IP65 – IK-10
Cooling
ANAN
Ambient temperature
45 ºC
Temperature rise
Class F – 155ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 61558, CE
UL 5085-1 / UL 5085-2
CAN/CSA C22.2 No 66.1-06, CAN/CSA C22.2 No 66.2-06
UL 5085-1 / UL 5085-2
CAN/CSA C22.2 No 66.1-06, CAN/CSA C22.2 No 66.2-06
Certifications
UL RECOGNIZED – CONSTRUCTION ONLY – Component
FILE: E532753
FILE: E532753
Includes
Silent blocks
Weight
122 kg
Dimensions (AxBxCxDxE)
724x410x764x370x350mm 11Ø
Price: 2012.00€
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Dry type autotransformer
Anti-flash varnish finish, offering:
- Protection against corrosive environments
- Increase of electrical isolation
- High compression capacity
- Reduction of noise level
- Increase of product’s lifespan
IP-65 up to 80kVA and IP-54 as from 100kVA (for IP-65 degree consult us) metallic box enclosure painted with polyester resin RAL 7035 (cat. C4 ISO 12994-2)
Safety class I
Includes cable glands, silent-blocks and stainless steel lifting eyebolts from 20 kVA
Possibility of tailor-made manufacturing
