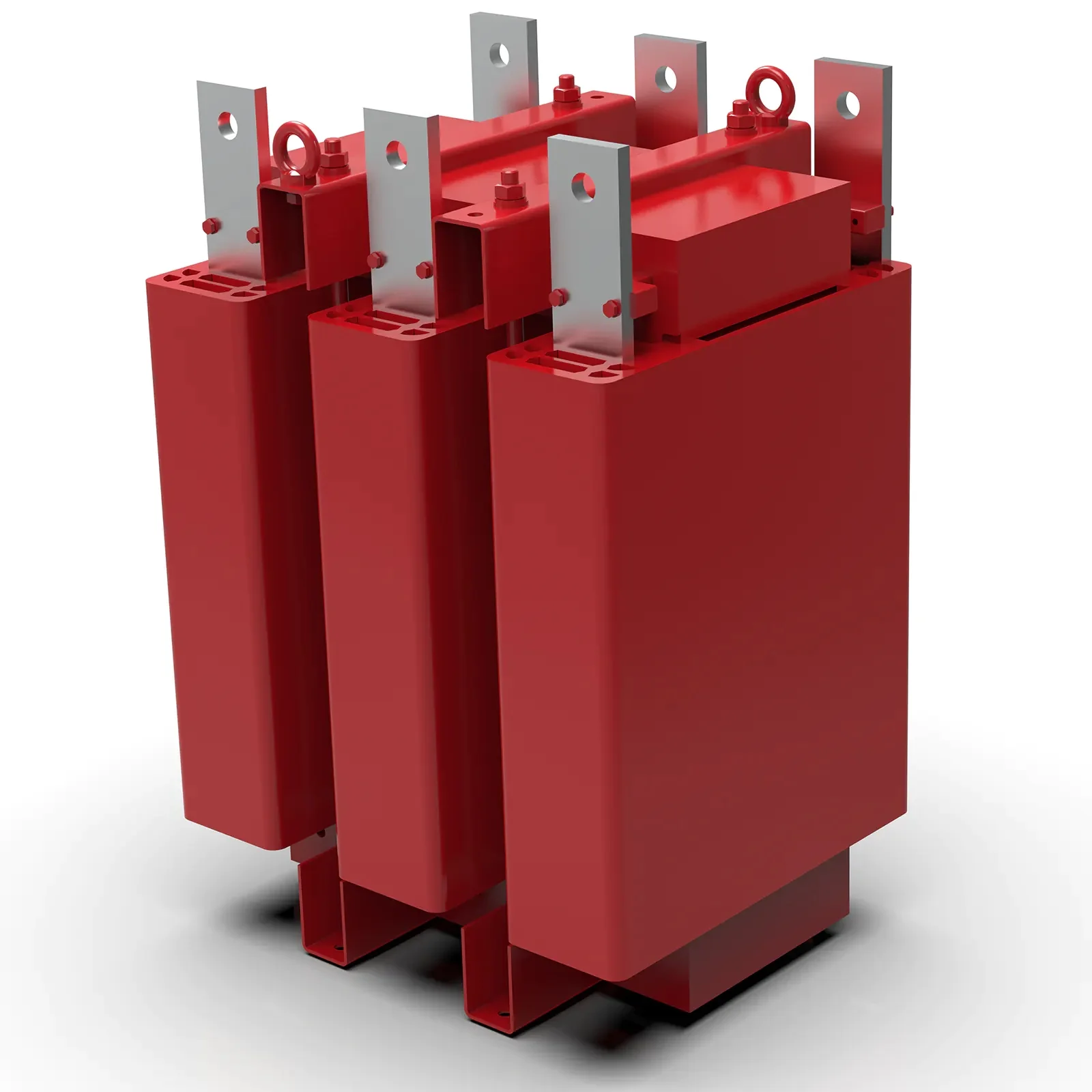

RTOX.
8 A Rated current
RTOX8
Technical characteristics
Rated current
8 A
Motor rating
3 kW / 4 CV
Line voltage
380 – 460 V
Reactor
2,757 mH (50 Hz)
Voltage drop
3% (50 Hz)
Thermal overload factor
0,05
Frequency
50/60 Hz
Protection degree
IP-00
Cooling
AN
Ambient temperature
45 ºC
Temperature rise
Class F – 155ºC
Insulation
Clase H – 180 ºC
Windings
Class HC – 200 ºC
Test voltage
3 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 60076-6, CE
Mounting
Screws
Includes
Bimetal thermal protection
Weight
4 kg
Dimensions (AxBxCxDxE)
150x125x185x64x100 mm 6Ø
Price: 154.00€
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Reactor
Anti-flash varnish finish, offering:
- Protection against corrosive environments
- Increase of electrical isolation
- High compression capacity
- Reduction of noise level
- Increase of product's lifespan
Safety class I
Includes thermal protection against overtemperatures
Possibility of tailor-made manufacturing
Technical remarks about the use of line reactors:
- Attenuation of voltage peaks in the output of the converter, protecting against premature degradation of the dielectrical parts of the motor
- Reduction of the reflection effect due to the length of the cables between the converter and the motor. This effect amplifies voltage values in the terminals of the motor
- It is recomended to use these inductances for lengths over 50 m from the converter to the motor
