PTU.
40 VA Rating
PTU1P40
Technical characteristics
Rating
40 VA
Input voltage
230 V
Output voltage
230 V
Electrostatic Screen
1 Screen (65 dB attenuation at 10 kHz)
Frequency
50/60 Hz
Protection degree
IP-20
Cooling
ANAN
Ambient temperature
45ºC
Temperature rise
Class B – 130ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
4 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 61558, CE
Mounting
Screws and DIN Rail
Weight
1,1 kg
Dimensions (AxBxCxDxE)
84x101x98x89x55 mm 5Ø
Price: 40.50€
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Dry type transformer.
IP-20 enclosure:
- Last generation V-0 fireproof polymer enclosure according to UL94 until 2500 VA (PTU1P) or 2000 VA (PTU3P).
- Metallic enclosure painted with epoxy polyester resin up to 3150 VA (PTU1P) or 2500 VA (PTU3P).
Safety Class I, convertible to Class II up to 2500 VA (PTU1P) or 2000 VA (PTU3P).
Includes LED functioning indicator and electrostatic screen (1 in PTU1P or 3 in PTU3P).
Possibility of custom-made manufacturing.
Applications
- The ultra-isolating transformers PTU are designed for environments with high electrical noise where shielding / electrostatic screen is needed to ensure a good signal quality.
Available accessories
Downloads
Plans

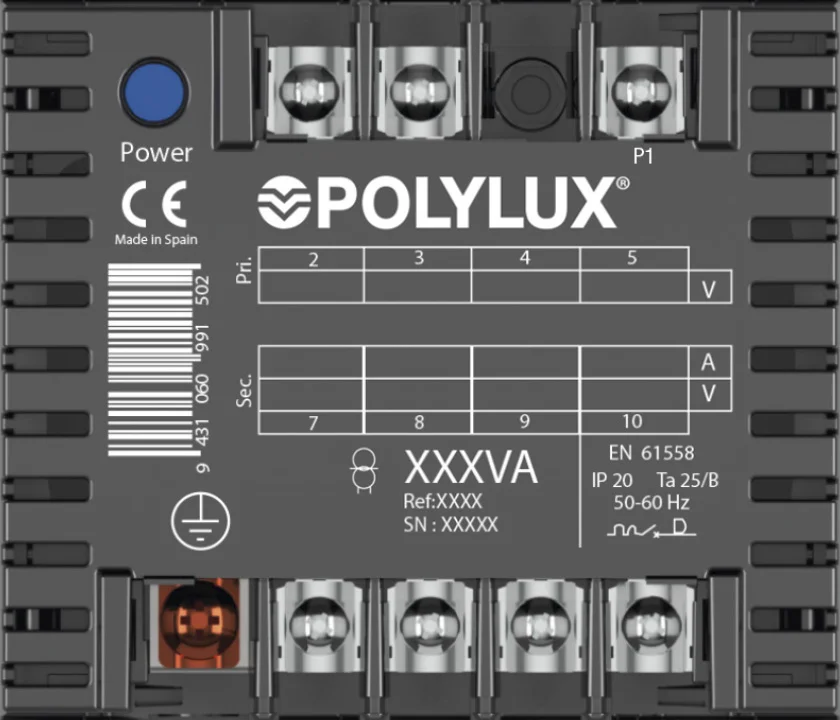

Electric scheme
≤ 100 VA
| Input: | Output: | ||
| 230 V | Connection: 2-3 | 230 V | Connection: 7-8 |
| Electrostatic shield connection | |||
| PTU1P | Connection: 10 | ||
Other references in this series
Special fabrications
We build transformers and inductive elements tailored to your needs.
Explain your needs and our engineers will create a solution adapted to your company.
