QTU.
800 VA Rating
QTU1P800
Technical characteristics
Rating
800 VA
Input voltage
230 V
Output voltage
230 V
Electrostatic Screen
1 Screen (65 dB attenuation at 10 kHz)
Frequency
50/60 Hz
Protection degree
IP-20
Cooling
ANAN
Ambient temperature
45ºC
Temperature rise
Class B – 130ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
4 kV (1 min, 50 Hz)
Standards
IEC/EN/UNE-EN 61558, CE
Mounting
Screws
Weight
9,7 kg
Dimensions (AxBxCxDxE)
136x162x156x146x104 mm 6Ø
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features
Dry type resin cast transformer
Advantages of resin technology:
- Protection against corrosive environments
- Protection against high vibration levels
- Protection against electrodynamic efforts
- Reduction of noise level
- Increase of product’s lifespan
IP-20 enclosure:
- Last generation V-0 fireproof polymer box according to UL94 until 1000 VA (PTU1P) or 800 VA (PTU3P)
- Resin from 1250 VA (QTU1P) or 1000 VA (QTU3P)
Safety class I, convertible in class II until 1000 VA (PTU1P) or 800 VA (PTU3P)
Includes LED functioning indicator and electrostatic screen (1 in PTU1P or 3 in PTU3P)
Possibility of tailor-made manufacturing
Downloads
Plans

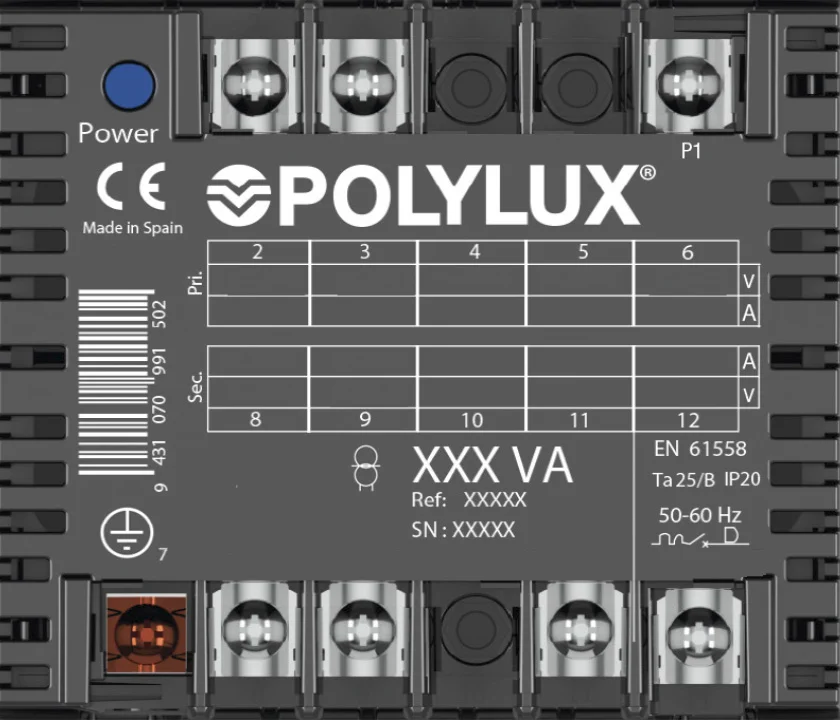

Electric scheme
From 160 VA to 1000 VA
| Input: | Output: | ||
| 230 V | Connection: 2-3 | 230 V | Connection: 8-9 |
| Electrostatic shield connection | |||
| QTU1P | Connection: 11 | ||
