PXR.
200 VA Rating
PXR200
Technical characteristics
Rating
200 VA
Input voltage
15/0/15/230/400 V
Output voltage
230 V
Frequency
50/60 Hz
Protection degree
IP-00
Cooling
AN
Ambient temperature
45ºC
Temperature rise
Class B – 130ºC
Insulation
Class H – 180ºC
Windings
Class HC – 200 ºC
Test voltage
4,6 kV (1 min, 50 Hz) pri-sec – 3,2 kV (1 min, 50 Hz) pri-earth – 2,5 kV (1 min, 50 Hz) sec-earth
Standards
IEC/EN/UNE-EN 61558, CE
Mounting
Screws and DIN Rail
Weight
2,4 kg
Dimensions (AxBxCxDxE)
96x88x106x72x80 mm 6
How to buy?
You can see the prices and buy online if you are registered and located in one of this countries: Austria, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Lithuania, Luxembourg Poland, Slovakia and Sweden
Features

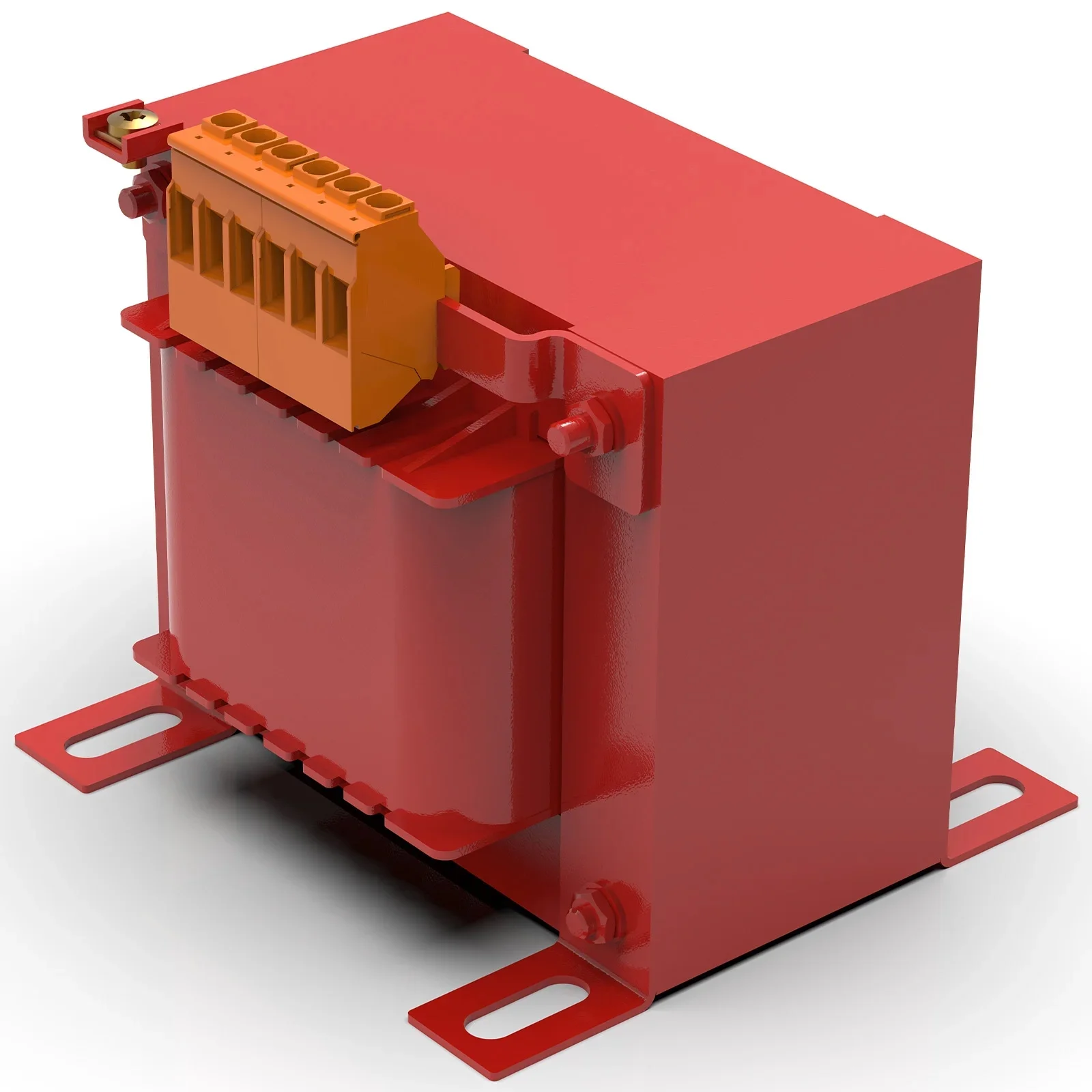

Dry type transformer (IP00)
Full rating in all taps.
Installation on DIN rail (up to 400VA) or by screws.
Custom made following the customer specifications.
Applications
- PXR transformers are specially designed to adapt voltages in switching and control applications in both domestic and industrial environments as well as in electrical cabinets.
- Another important application is the galvanic isolation of installations for safety reasons, as well as the generation of earth-referenced neutrals.
- We can also use them in installations where safety voltages are required (<50V).
Available accessories
Downloads
Plans
Electric scheme
| Input: | Output: | ||
| 215 V | Connection: 3-4 | 230 V | Connection: 6-7 |
| 230 V | Connection: 2-4 | ||
| 245 V | Connection: 1-4 | ||
| 400 V | Connection: 2-5 | ||
| 385 V | Connection: 3-5 | ||
| 415 V | Connection: 1-5 | ||
Other references in this series
Special fabrications
We build transformers and inductive elements tailored to your needs.
Explain your needs and our engineers will create a solution adapted to your company.
